For sale is a 10.5" dia x 54.5" long conical nosecone. The 5:1 ratio matches the Black Brant II. It was made by ScotGlas Manufacturing for a full-scale flying replica of the UP Aerospace Spaceloft XL that launches from Spaceport America in NM. The cone is made to fit 10" nominal Sonotube. ScotGlas list price is $350. (See the end of this page for original pricing).

It has a smooth finish on the outside, without the gelcoat, which will make it easier to prime and paint. It's made from random fiberglass tow and polyester resin. The tip is reinforced with glass-epoxy. The cone weighs about 5 pounds.

I'd like to see someone build an interested project based on this cone. Please email me privately with a reasonable offer if you're interested. jsdemar at gmail dot com.

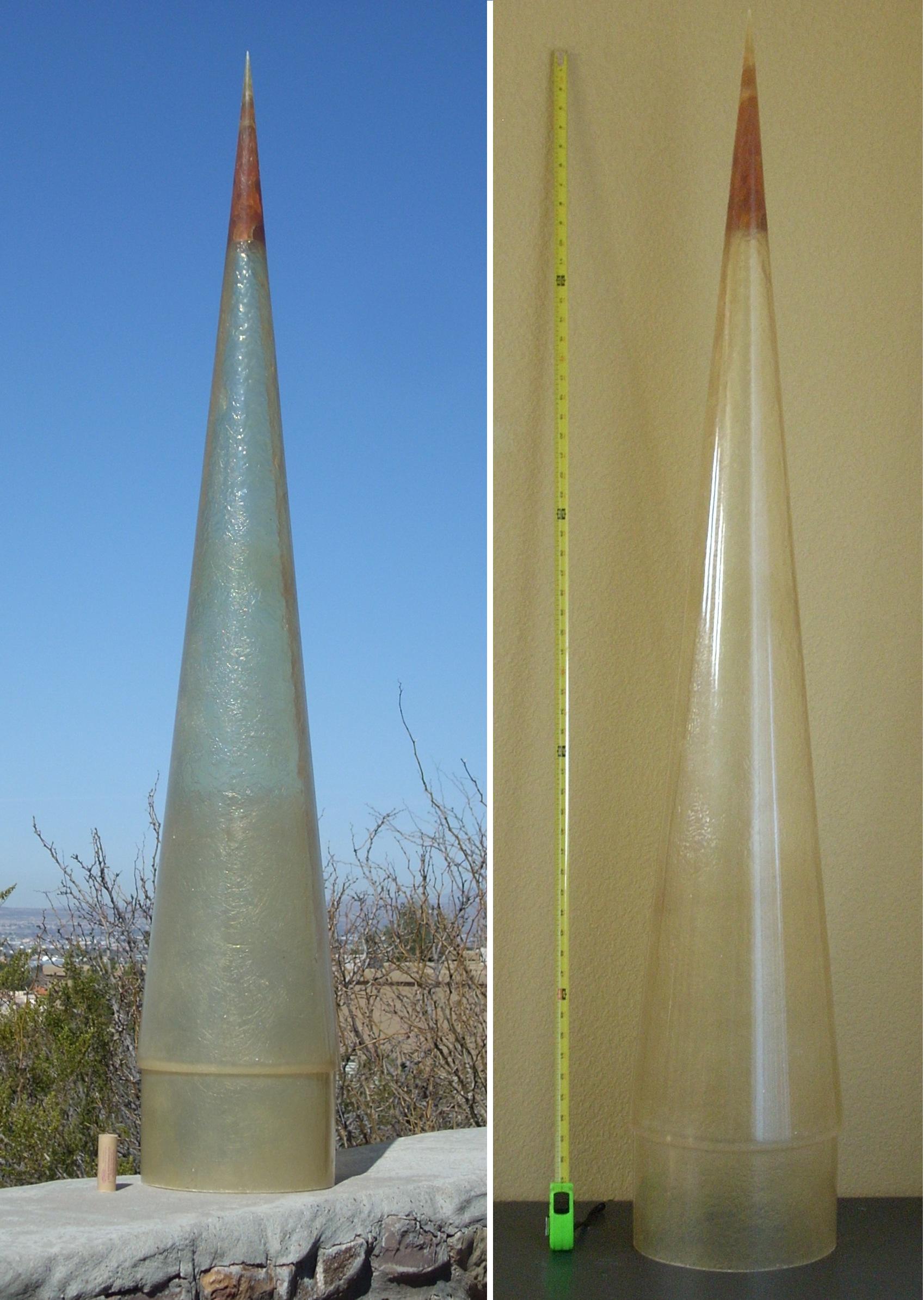

In the photo, there's an Estes D motor for size comparison. :) The photo was taken in my backyard facing in the general direction of Spaceport America near Las Cruces, NM. Click on the photo for a larger image.

-John


Pantherjon

Well-Known Member
Joined
Jan 19, 2009
Messages
7,434
Reaction score
4
Translucent too! Must be the lighting but in the right photo it appears as if the tip is off center to the right..:confused2:


jsdemar

Well-Known Member
Joined
Dec 31, 2009
Messages
2,638
Reaction score
652
Translucent too! Must be the lighting but in the right photo it appears as if the tip is off center to the right..:confused2:
Must be the room light vs. outdoor light. The cone is perfectly straight. ScotGlas has a beautiful, big mold (expensive) for making these nosecones. The material and process are similar to making a boat hull, and requires many man-hours.

-John
