Weather (and new house) not being condusive to painting, I found myself itching to do a scratch build this evening. Every so often, I like to meander around the internet and look at concept aircraft to get some ideas for rocket design. Here's one I've had my eye on for the past year or so;



It's called the Hawker P1216, and it was a proposal for a replacement for the BAe Harrier. I did a little bit of messing around, and here's what I came up with....

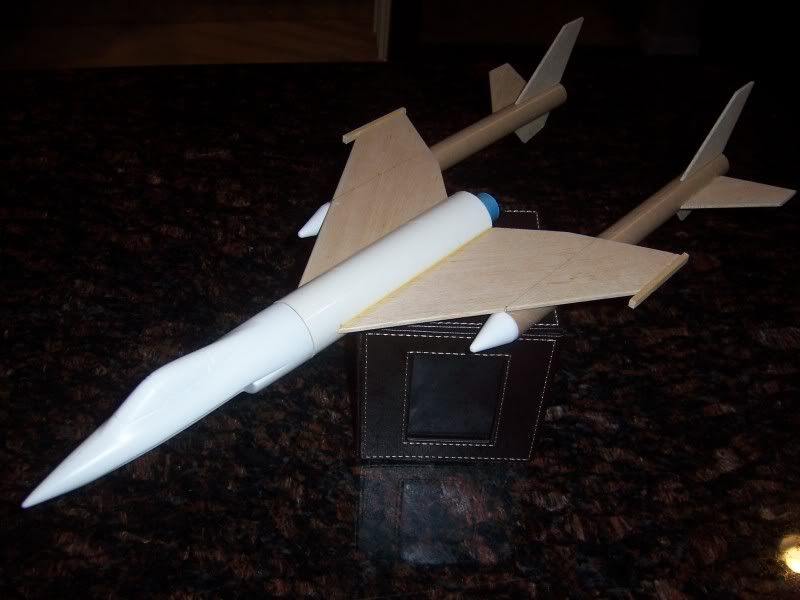

Nose cone is the PNC-55IR cockpit-style from the Interceptor II. Main body is a section of BT-55 I had laying around that's just long enough to fit the 'chute right in front of the 18mm engine mount. Side pods are a 18" long BT-20 cut in half with PNC-20Y nose cones on the end.

Very interested to see how she'll swing-test......

Later,
EV


EchoVictor

Well-Known Member
Joined
Jan 30, 2009
Messages
400
Reaction score
0
Woohoo! Taped her up to the kite string tonight, and did a little swingin'. Attached to both the side and the top, she swung-tested perfectly in both orientations, no nose weight required. I think having the engine mounted amidships is what really helps it out.

Well, on to sealing/sanding/painting....

Later,
EV


AstronMike

Well-Known Member
Joined
Jan 18, 2009
Messages
550
Reaction score
0
That looks neat. Might have to end up making an upscaled glider version of this sometimes. Where did you end for a boost CG that tested correctly? (assuming you had a loaded motor installed, of course)

Sort of a cross between the F14 and F16, isnt it?


EchoVictor

Well-Known Member
Joined
Jan 30, 2009
Messages
400
Reaction score
0
Adding no nose weight whatsoever, the CG wound up about 1.5~2" forward of the rear edge of the body tube with a C6-5 installed.

If you do a search on the actual aircraft proposal, the front end looks very much like an F-16. When I first thought of turning this into a rocket, I just knew I had to use that PNC-55IR.

Later,
EV


AKPilot

Well-Known Member
Joined
Jan 5, 2009
Messages
5,253
Reaction score
0
That's a great looking rocket!!! And plane!


EchoVictor

Well-Known Member
Joined
Jan 30, 2009
Messages
400
Reaction score
0
Had a little time and some nicer weather yesterday, so I started painting this sucker. First, I needed to figure out a color scheme. A little bit of internet research led me to an artist who did some concept renderings of what this plane would have looked like if it had gone into service in the UK. Here's the one that's close to what I'm going to do;



I started by laying down a nice shade of grey Kilz (the camera flash makes it look lighter than it really is);


Next up is the camo pattern. I'm going to use a dark green instead for a little more contrast. As luck would have it, I went through my old pile of decals and I found some old plastic model Harrier decals. I did that kit in USMC markings, so I still have all the British markings. Since this aircraft was originally intended to be the Harrier's replacement, I figure using old Harrier decals is quite fitting!

Later,
EV


EchoVictor

Well-Known Member
Joined
Jan 30, 2009
Messages
400
Reaction score
0
Here's the camo, done with a spray can and curved piece of cardstock as a mask;



Later,
EV


EchoVictor

Well-Known Member
Joined
Jan 30, 2009
Messages
400
Reaction score
0
Ay caramba! 25-year old decals are officially a pain in the rear to deal with. Either it was fragile and tearing, or the backing paper leaving a light blue mess underneath the decal. Glad that's over! Results;







Later,
EV


EchoVictor

Well-Known Member
Joined
Jan 30, 2009
Messages
400
Reaction score
0
SUCCESS!!!

Flew this past weekend with my old club in WI (http://www.wooshrocketry.org/) for the "Decertified Launch of Death".

Got the Hawker up in the air twice; once on a B6-4 and again on a C6-7. Both flights were wayyyyy straighter than I thought they would be.

Gratuitous launch shot;


Now all I need are some 1/32 plastic model Sidewinders for the side rails. Anyone have any extra lying around they're willing to part with?

Later,
EV


Tolppisouth

Well-Known Member
Joined
Jan 23, 2009
Messages
539
Reaction score
0
Looks great. During launch, did the rocket have a relatively slow take-off?

John


les

Well-Known Member
TRF Supporter
Joined
Jan 20, 2009
Messages
2,697
Reaction score
345
Looks great. Would you be willing to post plans?


Neutron95

Well-Known Member
Joined
Jan 17, 2010
Messages
194
Reaction score
23
It really reminds me of spaceship one, with the motor in the central body and two tail booms.


dlazarus6660

Well-Known Member
Joined
Feb 9, 2010
Messages
3,885
Reaction score
2
EV,

Outstanding!

I give up! I quit!

I just wanted to post a few simple designs.... but NOooooo...

You have to post this outstanding design and em-bear-ass the rest of US!
Thanks Buddy! See if I reply to your inquiry's!

'Enuff ranting... You are Master! Thank you for your post!

Your servant,:eek:

Daniel


EchoVictor

Well-Known Member
Joined
Jan 30, 2009
Messages
400
Reaction score
0
Dude,

don't sell yourself short. That A-7 Corsair II of yours is flippin' sweet! :D I hope you realize that after seeing how well yours looks, I'm going to have to try to build one sometime with an Estes Crusader Swing-Wing nose cone from Moldin' Oldies.

I can't wait to see what you have up your sleeve next!

Later,
EV


dragon_rider10

Well-Known Member
Joined
Dec 10, 2009
Messages
699
Reaction score
0
Hmm...

you have given me inspiration for the "EMRR Design this Spaceship" contest...

which has this as a challenge subject:



Methinks there are similarities.
