This is a follow on to the Ares V I crashed last week. It is heavily modified from a free paper kit by Ton Noteboom, downsized to 1:192 scale. The wraps are from the Dr. Zooch Box-O-stuff. The C6-3 on the last flight seemed a bit weak though, I either may make it so that I can put engines in the SRB's like on the last Ares V, cluster an 18mm with 2 or 3 13mms (most like A10-Pt's) , or both.
Progress as of now:

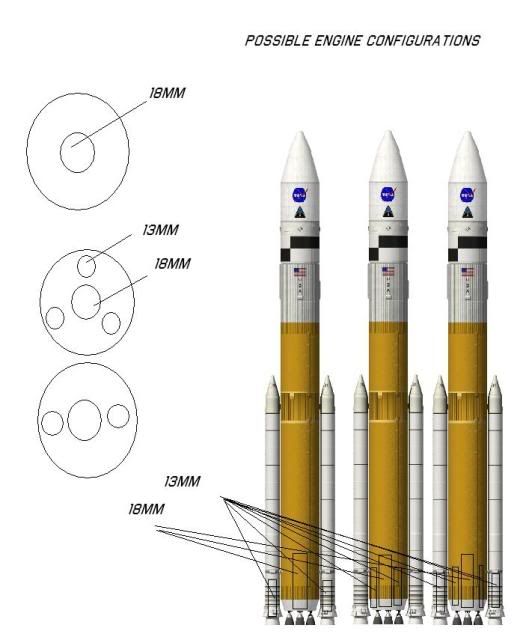

A very crude interpretations of possible engine configurations:

Last edited:

dedleytedley

Well-Known Member
Joined
Apr 29, 2009
Messages
292
Reaction score
0
That's gonna be one sweet rocket. I've thought about building one based on the BT-101. Cygnus has some 4 inch mmt's with a central 24mm and 4 18mm around it. You mention a free paper model; Can you provide a link or url to it? Ted


Atlantis

Well-Known Member
Joined
Jan 20, 2009
Messages
93
Reaction score
0
That's gonna be one sweet rocket. I've thought about building one based on the BT-101. Cygnus has some 4 inch mmt's with a central 24mm and 4 18mm around it. You mention a free paper model; Can you provide a link or url to it? Ted
Here's the link:http://www.jleslie48.com/gallery_models_real.html

This site has several great models for conversion.
I had to modify since it was designed in the older Ares V configuration from befotre June 2008


dedleytedley

Well-Known Member
Joined
Apr 29, 2009
Messages
292
Reaction score
0
Thanks for the link! There are enough paper models there to keep a builder busy for a long time. I'd like to see more of your build so please keep posting. Ted


Atlantis

Well-Known Member
Joined
Jan 20, 2009
Messages
93
Reaction score
0
It's almost ready to go, all I need to do is install the retention hook and glue everything together. The aft section of the SRB's detach past the yellow section. For flight, those will be removed and ones with balsa wood fins will be installed.

Last edited:

Atlantis

Well-Known Member
Joined
Jan 20, 2009
Messages
93
Reaction score
0
Aside from the flight fins,it's done.
Overall shot:


dramatic up-angle:


In the rocket park at the Space and Rocket Center (night shot)

Last edited:

Atlantis

Well-Known Member
Joined
Jan 20, 2009
Messages
93
Reaction score
0
I didn't realize they had an Ares V there. That is so cool-looking next to the Saturn V!
That's actually my model photoshopped into the picture (in case you didn't know). But still, it does look cool.


Chrisn

Well-Known Member
Joined
Apr 10, 2009
Messages
1,494
Reaction score
0
Nice photoshop, I cant even tell by the pixels. So is it to scale? :p


Dr.Zooch

Well-Known Member
Joined
Jan 22, 2009
Messages
2,113
Reaction score
14
The Dr. Zooch Ares V just did the extra test I assigned to it prior to going into kit productions (I wanna have it out for NARAM). The final test was to see how stable it would fly without nose ballast. Flew at this weekend's MDRA launch on a C6-3 and really grabbed some sky- very stable. The production model will be the first Dr. Zooch kit without a nose ballast.


luke strawwalker

Well-Known Member
Joined
Jan 18, 2009
Messages
9,139
Reaction score
14
The Dr. Zooch Ares V just did the extra test I assigned to it prior to going into kit productions (I wanna have it out for NARAM). The final test was to see how stable it would fly without nose ballast. Flew at this weekend's MDRA launch on a C6-3 and really grabbed some sky- very stable. The production model will be the first Dr. Zooch kit without a nose ballast.

Cool... looking forward to that one...

Just when I thought it was safe to finish an order... :D

Good work on these guys... Probably end up being the ONLY Ares V's to actually fly... but that's another story...

Later and KUTGW!! OL JR :)
