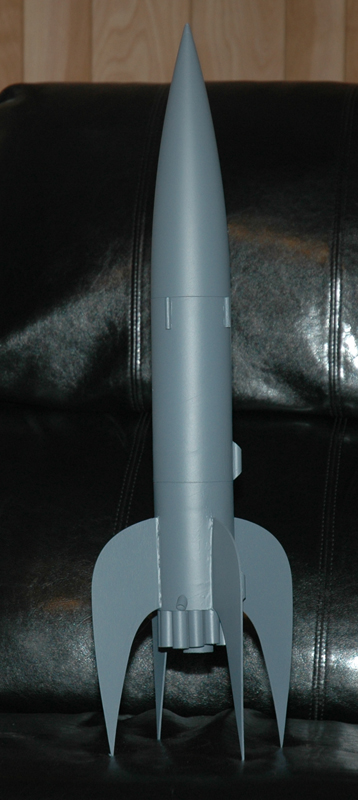

Also built for the sheer giggles of it, is this little bugger, not to be vague but I haven't decided on a name yet. Your basic retro Sci-fi with curvy fins and lots of exhaust tubes. WHere it gets interesting is protecting the pointy fins
The solution, have the airframe separate just ahead of the fins allowing most of the mass to reside in the nose section.




She is 21" overall, 2.6" in dimeter, powered by a 24mm motor mount and stabilized by four 1/16" pointy ply fins. Twelve short sections of BT-5 surround the central 24mm MM.

Don't pay to any attention to the fillets, they turned out pretty bad and the exhaust tubes are not even. But this was an assemblage of spare parts. flavored with odds and ends, so no big whoopey.



Build and flight pics to follow.
