    SCALE - Nike Ajax (MIM-3) Gallery

    Welcome to the SCALE Nike Ajax (MIM-3) Gallery on TRF.

    This gallery showcases the Nike Ajax (MIM-3) and those rockets derived from it. Particularly appropriate in this thread are the following:


    Estes: Nike Ajax: #1279
    Roachwerks: Nike Ajax (13mm):
    Roachwerks: Nike Ajax (18mm):
    The Launch Pad: Nike Ajax MIM-3A: K060



    as well as any upscales, downscales, clones, kitbashes or other derivative works. Even Goonies qualify!



    The first successful Nike test was during November 1951, intercepting a drone B-17 Flying Fortress. The first type, Nike Ajax (MIM-3), were deployed starting in 1953. The Army initially ordered 1,000 missiles and 60 sets of equipment. They were placed to protect strategic and tactical sites within the US. As a last-line of defense from air attack, they were positioned to protect cities as well as military installations. The missile was deployed first at Fort Meade, Maryland during December, 1953. A further 240 launch sites were built up to 1962. They replaced 896 radar-guided anti-aircraft guns, operated by the National Guard or Army to protect certain key sites. This left a handful of 75 mm Skysweeper emplacements as the only anti-aircraft artillery remaining in use by the US. By 1957 the Regular Army AAA units had been replaced by missile battalions. During 1958 the Army National Guard began to replace their guns and adopt the Ajax system.

    Each launch site had three parts, separated by at least 1,000 yards (914 m). One part (designated C) of about six acres (24,000 mē) contained the IFC (Integrated Fire Control) radar systems to detect incoming targets (acquisition and target tracking) and direct the missiles (missile tracking), along with the computer systems to plot and direct the intercept. The second part (designated L), around forty acres (160,000 mē), held 1-3 underground missile magazines each serving a group of four launch assemblies and included a safety zone. The site had a crew of 109 officers and men who ran the site continuously. One launcher would be on 15 minutes alert, two on 30 minutes and one on two hour alert. The third part was the administrative area (designated A), which was usually co-located with the IFC and contained the battery headquarters, barracks, mess, recreation hall, and motor pool. The actual configuration of the Nike sites differed depending on geography. Whenever possible the sites were placed on existing military bases or National Guard armories; otherwise land had to be purchased.

    The Nike batteries were organized in Defense Areas and placed around population centers and strategic locations such as long-range bomber bases, nuclear plants, and (later) ICBM sites. The Nike sites in a Defense Area formed a circle around these cities and bases. There was no fixed number of Nike batteries in a Defense Area and the actual number of batteries varied from a low of two in the Barksdale AFB Defense Area to a high of 22 in the Chicago Defense Area. In the Continental United States the sites were numbered from 01 to 99 starting at the north and increasing clockwise. The numbers had no relation to actual compass headings, but generally Nike sites numbered 01 to 25 were to the northeast and east, those numbered 26 to 50 were to the southeast and south, those numbered 51 to 75 were to the southwest and west, and those numbered 76 to 99 were to the northwest and north. The Defense Areas in the Continental United States were identified by a one- or two-letter code which were related to the city name. Thus those Nike sites starting with C were in the Chicago Defense Area, those starting with HM were in the Homestead AFB/Miami Defense Area, those starting with NY were in the New York Defense Area, and so forth. As an example Nike Site SF-88L refers to the launcher area of the battery located in the northwestern part of the San Francisco Defense Area.

    During the early-to-mid 1960s the Nike Ajax batteries were upgraded to the Hercules system. The new missiles had greater range and destructive power, so about half as many batteries provided the same defensive capability. Regular Army batteries were either upgraded to the Hercules system or decommissioned. Army National Guard units continued to use the Ajax system until 1964, when they too upgraded to Hercules. Eventually, the Regular Army units were replaced by the National Guard as a cost-saving measure, since the Guard units could return to their homes when off duty.
    Last edited by JAL3; 26th July 2012 at 04:37 AM.
    __________________
    John A. Lee O.S.L.
    Alamo Rocketeers NAR Section 661
    NAR 87285, L1 8 March 2008
    TRA 03040, L1 8 March 2008

    Photos of the "Fleet": http://www.flickr.com/photos/23694991@N03/

    I used to tell Mom, "...I want to fly rockets when I grow up!"

    She said, "Make up your mind, you can't do both!"

  2. #2
    Join Date
    18th January 2009
    Location
    San Antonio, TX
    Posts
    11,790

    Estes Nike Ajax (#1279) Basic Information

    Estes Nike Ajax (#1279) Basic Information.

    Estes Industries

    MODEL NAME: Nike Ajax Also known as:

    NUMBER: #1279

    Introduced: 1976
    Final Year: 1981
    Designer: Wayne Kellner

    Type: Scale
    Motor Mount: 1x18mm
    Recovery: Parachute
    Stages: 1
    Length: 31.25"
    Diameter: 1.325"
    Span:
    Weight: 2.6 oz

    Mfg. Description: The first supersonic antiaircraft missile, the Nike Ajax, was developed to defend large cities and industrial complexes against enemy bomber attack. Actual vehicle has a range of 30 to 50 miles and an effective altitude capability of approximately 60,000 feet at a speed of more than 1500 miles per hour. Real vehicle is boosted by a solid propellant rocket which drops away at a predetermined height as a sustaining liquid propellant motor kicks in. Our 12.4:1 semi scale model comes complete with authentic U.S. Army decor and realistic detailing. Kit includes 18" parachute recovery, die cut balsa parts and a quick release engine mount. (Estes 1976 Catalog)


    Advertising Liveries

    Estes 1976 Catalog Estes 1977 Catalog Estes 1978 Catalog

    Estes 1979 Catalog Estes 1980 Catalog


    Face Card(s)

    [img][/img]

    Instruction Header(s)





    First post in this thread featuring this rocket.

    See Also: LINKS
    EMRR
    RocketReviews
    Mfg. Page


    If you have any additional information on this rocket and/or catalog photos please let us know.
    Last edited by JAL3; 3rd March 2012 at 12:30 AM.
    __________________
    John A. Lee O.S.L.
    Alamo Rocketeers NAR Section 661
    NAR 87285, L1 8 March 2008
    TRA 03040, L1 8 March 2008

    Photos of the "Fleet": http://www.flickr.com/photos/23694991@N03/

    I used to tell Mom, "...I want to fly rockets when I grow up!"

    She said, "Make up your mind, you can't do both!"

  3. #3
    Join Date
    18th January 2009
    Location
    San Antonio, TX
    Posts
    11,790

    Roachwerks Nike Ajax (13mm) Basic Information

    Roachwerks Nike Ajax (13mm) Basic Information.

    Roachwerks

    MODEL NAME: Nike Ajax (13mm) Also known as:

    NUMBER:

    Introduced:
    Final Year:
    Designer: Gordon Agnello

    Type: Scale
    Motor Mount: 1x13mm
    Recovery: Parachute
    Stages: 1
    Length:
    Diameter:
    Span:
    Weight:

    Mfg. Description: DESC


    Advertising Liveries

    [img][/img]


    Face Card(s)

    [img][/img]

    Instruction Header(s)

    [img][/img]



    First post in this thread featuring this rocket.

    See Also: LINKS
    EMRR
    RocketReviews
    ]Mfg. Page


    If you have any additional information on this rocket and/or catalog photos please let us know.
    Last edited by JAL3; 26th July 2012 at 04:29 AM.
    __________________
    John A. Lee O.S.L.
    Alamo Rocketeers NAR Section 661
    NAR 87285, L1 8 March 2008
    TRA 03040, L1 8 March 2008

    Photos of the "Fleet": http://www.flickr.com/photos/23694991@N03/

    I used to tell Mom, "...I want to fly rockets when I grow up!"

    She said, "Make up your mind, you can't do both!"

  4. #4
    Join Date
    18th January 2009
    Location
    San Antonio, TX
    Posts
    11,790

    Roachwerks Nike Ajax (18mm) Basic Information

    Roachwerks Nike Ajax (18mm) Basic Information.

    Roachwerks

    MODEL NAME: Nike Ajax (18mm) Also known as:

    NUMBER:

    Introduced:
    Final Year:
    Designer: Gordon Agnello

    Type: Scale
    Motor Mount: 1x18mm
    Recovery: Parachute
    Stages: 1
    Length:
    Diameter:
    Span:
    Weight:

    Mfg. Description: DESC


    Advertising Liveries

    [img][/img]


    Face Card(s)

    [img][/img]

    Instruction Header(s)

    [img][/img]



    First post in this thread featuring this rocket.

    See Also: LINKS
    EMRR
    RocketReviews
    ]Mfg. Page


    If you have any additional information on this rocket and/or catalog photos please let us know.
    Last edited by JAL3; 26th July 2012 at 04:30 AM.
    __________________
    John A. Lee O.S.L.
    Alamo Rocketeers NAR Section 661
    NAR 87285, L1 8 March 2008
    TRA 03040, L1 8 March 2008

    Photos of the "Fleet": http://www.flickr.com/photos/23694991@N03/

    I used to tell Mom, "...I want to fly rockets when I grow up!"

    She said, "Make up your mind, you can't do both!"

  5. #5
    Join Date
    18th January 2009
    Location
    San Antonio, TX
    Posts
    11,790

    The Launch Pad Nike Ajax MIM-3A (K060) Basic Information

    The Launch Pad Nike Ajax MIM-3A (K060) Basic Information.

    The Launch Pad

    MODEL NAME: Nike Ajax MIM-3A Also known as:

    NUMBER: K060

    Introduced:
    Final Year:
    Designer:

    Type: Scale, Cluster
    Motor Mount: 3x24mm
    Recovery: Parachute
    Stages: 1
    Length: 55.5"
    Diameter: 2.6"
    Span:
    Weight:

    Mfg. Description: In 1953, Nike Ajax was the first guided SAM system in the world to enter operational service. The guidance hardware was derived directly from that used to aim radar-controlled anti-aircraft artillery guns towards the end of WWII. The system used two separate radars; one to track the target and another to track the missile. A computer intersected the two beams at a predicted future point and, when the missile was just below the nose of the target, a pulsed code was sent to explode the fragmentation warheads. Nike Ajax contained not one, but three warheads, weighing 12, 179, and 122 pounds, respectively. Burnout speed was Mach 2.3, well above that of any attack aircraft of the time. It had a range of 25 miles. Although ambitious for its day, it was quickly outdated, and was soon replaced by Nike Hercules.

    This is the first kit The Launch Pad has offered using a three motor (24mm) cluster. It stands 55.5" tall (1/7.5 scale), and is recovered by two 18"x30" parachutes. Despite its size, this rocket can still be fired from a three foot long, 3/16" diameter launch rod. Calm winds and a 12 volt launch system for clustered ignition are recommended. (TLP 2012 Web Ad)


    Advertising Liveries

    2012 Web Ad


    Face Card(s)



    Instruction Header(s)

    [img][/img]



    First post in this thread featuring this rocket.

    See Also: LINKS
    EMRR
    RocketReviews
    Mfg. Page


    If you have any additional information on this rocket and/or catalog photos please let us know.
    Last edited by JAL3; 26th July 2012 at 04:47 AM.
    __________________
    John A. Lee O.S.L.
    Alamo Rocketeers NAR Section 661
    NAR 87285, L1 8 March 2008
    TRA 03040, L1 8 March 2008

    Photos of the "Fleet": http://www.flickr.com/photos/23694991@N03/

    I used to tell Mom, "...I want to fly rockets when I grow up!"

    She said, "Make up your mind, you can't do both!"

  6. #6
    Join Date
    12th July 2011
    Posts
    79

    SCALE - Nike Ajax Gallery (MIM 3)

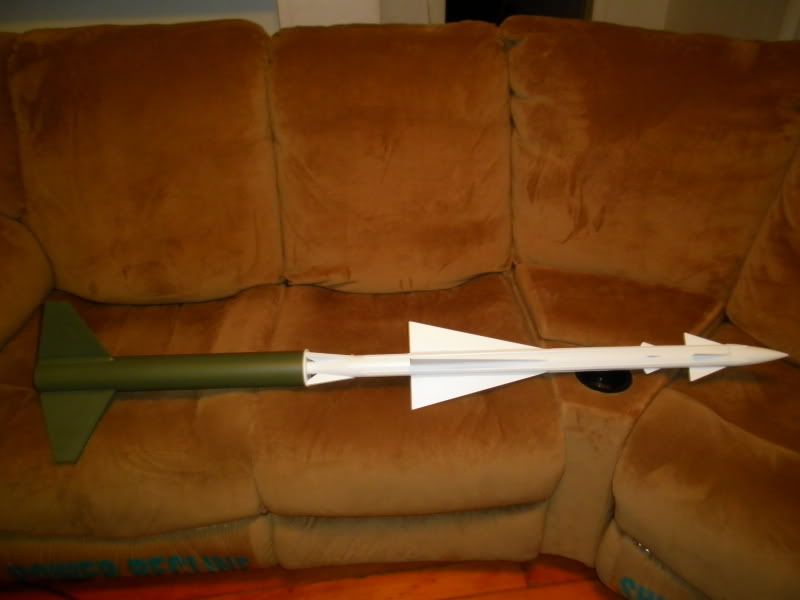

    It's done,not pretty but it should work.I'm going to build it again now that i have a better idea of how build a rocket.Just waiting for the Mantis launch pad to show up,then i can send it up!



    Post copied to gallery with permission
    Last edited by JAL3; 3rd March 2012 at 12:24 AM.

  7. #7
    Join Date
    2nd October 2011
    Location
    South Dakota
    Posts
    163
    BEAUTIFUL !!!

    I have the same kit to build and a real one in the Museum just down the street.........

    Glasspack

  8. #8
    Join Date
    4th May 2011
    Location
    Dallas
    Posts
    653
    Quote Originally Posted by Addicted View Post
    It's done,not pretty
    Looks good to me!

    I've always been interested in that design. I wasn't sure if you could make one stable for model rocket use though.

  9. #9
    Join Date
    19th January 2009
    Posts
    617
    Here's mine, scratch-built and based on one I saw at the Luftwaffemuseum, Berlin-Gatow. It's stable, but heavy. And the only reason the booster survived is that our flying site is marshy.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	nikeajax.jpg
Views:	97
Size:	73.1 KB
ID:	62306
    Don't just stand there, get one up!

  10. #10
    Join Date
    1st August 2009
    Location
    The Hinterland
    Posts
    6,814
    Quote Originally Posted by adrian View Post
    Here's mine, scratch-built and based on one I saw at the Luftwaffemuseum, Berlin-Gatow. It's stable, but heavy. And the only reason the booster survived is that our flying site is marshy.
    Very nice ! Can you tell me how big it is and what it flies on ?

    I must get mine built ,as it`s great looking missile.

    Paul T
    ROCKETRY DELINQUENT ,I put my soul in what I do.

    I built a rocket, and on the seventh day ,I rested

    CTI.....a better way to fly

  11. #11
    Join Date
    11th December 2011
    Location
    Selma CA
    Posts
    138

    SCALE - Nike Ajax Gallery (MIM 3)

    Ready to go on (3) E9s
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	Nike Ajax small.jpg
Views:	70
Size:	76.8 KB
ID:	67396
    Last edited by JAL3; 26th July 2012 at 04:45 AM.
    Trackers are worth it

  12. #12
    Join Date
    18th January 2009
    Location
    San Antonio, TX
    Posts
    11,790
    Quote Originally Posted by Jimmy F. View Post
    Ready to go on (3) E9s
    Is it a scratch or kit? If the latter, which one.

    Thanks for sharing.
    __________________
    John A. Lee O.S.L.
    Alamo Rocketeers NAR Section 661
    NAR 87285, L1 8 March 2008
    TRA 03040, L1 8 March 2008

    Photos of the "Fleet": http://www.flickr.com/photos/23694991@N03/

    I used to tell Mom, "...I want to fly rockets when I grow up!"

    She said, "Make up your mind, you can't do both!"

  13. #13
    Join Date
    18th January 2009
    Location
    North of Detroit
    Posts
    2,131
    Here's mine.

    Peanut scale, The pair are 1/12th scale and the last two are the Launch Pad kit.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	smallnikeajax.JPG
Views:	88
Size:	21.3 KB
ID:	67436   Click image for larger version.

Name:	Nike Ajax.JPG
Views:	74
Size:	30.9 KB
ID:	67437   Click image for larger version.

Name:	onpadwpershing.JPG
Views:	77
Size:	40.2 KB
ID:	67438   Click image for larger version.

Name:	nikeboost.JPG
Views:	70
Size:	20.0 KB
ID:	67439
    Last edited by JAL3; 26th July 2012 at 04:28 AM.
    "I'm a sandman. I've never killed anyone. I terminate runners when their time is up." Logan from "Logan's Run"

    http://excelsiorrocketry.com/

  14. #14
    Join Date
    18th January 2009
    Location
    San Antonio, TX
    Posts
    11,790
    Quote Originally Posted by sandman View Post
    Here's mine.

    Peanut scale, The pair are 1/12th scale and the last two are the Launch Pad kit.
    Are those in the first 2 pics ones you kitted?

    I remember building the Estes version as a kid. It was one of the last I built and I never did get to fly it.
    __________________
    John A. Lee O.S.L.
    Alamo Rocketeers NAR Section 661
    NAR 87285, L1 8 March 2008
    TRA 03040, L1 8 March 2008

    Photos of the "Fleet": http://www.flickr.com/photos/23694991@N03/

    I used to tell Mom, "...I want to fly rockets when I grow up!"

    She said, "Make up your mind, you can't do both!"

  15. #15
    Join Date
    27th October 2009
    Location
    Brigham City, UT
    Posts
    895
    This is my early version of the TLP Nike-Ajax. I later painted the booster olive green and put on the Sandman's decals.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	nike_Ajax.jpg
Views:	51
Size:	33.9 KB
ID:	67442   Click image for larger version.

Name:	NikeAjax_2.jpg
Views:	58
Size:	93.7 KB
ID:	67443

  16. #16
    Join Date
    18th January 2009
    Location
    North of Detroit
    Posts
    2,131
    Quote Originally Posted by JAL3 View Post
    Are those in the first 2 pics ones you kitted?

    I remember building the Estes version as a kid. It was one of the last I built and I never did get to fly it.
    Yep, long OOP.

    The bigger ones are the same scale as my bigger Nike Hercules and the smaller ones are the same scale as my 4 x 13mm Nike Hercules.

    As a small side note on the Launch Pad version I built. It flew great on the launch photo I posted. I build light and I got some great altitude on a three motor cluster.

    It wasn't until I went to launch it the next time that I discovered only 2 motors had lit! If you look really close at the boost pic you only see two flames.

    So, I basically got an extra motor out of it!
    Last edited by sandman; 7th January 2012 at 06:04 PM.
    "I'm a sandman. I've never killed anyone. I terminate runners when their time is up." Logan from "Logan's Run"

    http://excelsiorrocketry.com/

  17. #17
    Join Date
    18th January 2009
    Location
    San Antonio, TX
    Posts
    11,790
    Quote Originally Posted by sandman View Post
    Yep, long OOP.

    The bigger ones are the same scale as my bigger Nike Hercules and the smaller ones are the same scale as my 4 x 13mm Nike Hercules.

    As a small side note on the Launch Pad version I built. It flew great on the launch photo I posted. I build light and I got some great altitude on a three motor cluster.

    It wasn't until I went to launch it the next time that I discovered only 2 motors had lit! If you look really close at the boost pic you only see two flames.

    So, I basically got an extra motor out of it!
    So the smaller one is 3x13mm and the larger ones are 3x18?
    __________________
    John A. Lee O.S.L.
    Alamo Rocketeers NAR Section 661
    NAR 87285, L1 8 March 2008
    TRA 03040, L1 8 March 2008

    Photos of the "Fleet": http://www.flickr.com/photos/23694991@N03/

    I used to tell Mom, "...I want to fly rockets when I grow up!"

    She said, "Make up your mind, you can't do both!"

  18. #18
    Join Date
    18th January 2009
    Location
    North of Detroit
    Posts
    2,131
    Quote Originally Posted by JAL3 View Post
    So the smaller one is 3x13mm and the larger ones are 3x18?
    I must have written that wrong.

    The Launch Pad kit is 3 x 24mm.

    The tiny one is a singe 13mm and the middle two are single 18mm.

    The two middle size ones have a BT-55 booster base but the upper section is only a BT-20. I could have put a single 24mm motor in it but I was a bit concerned about the shotgun ejection charges that some of the Estes D12's have.

    I thought maybe with an overenthusiastic ejection charge, the BT-20 may be a bit too restrictive and blown the model in half so I stuck with an 18mm motor mount.

    That would be bad.
    "I'm a sandman. I've never killed anyone. I terminate runners when their time is up." Logan from "Logan's Run"

    http://excelsiorrocketry.com/

  19. #19
    Join Date
    18th January 2009
    Location
    San Antonio, TX
    Posts
    11,790
    Quote Originally Posted by sandman View Post
    I must have written that wrong.

    The Launch Pad kit is 3 x 24mm.

    The tiny one is a singe 13mm and the middle two are single 18mm.

    The two middle size ones have a BT-55 booster base but the upper section is only a BT-20. I could have put a single 24mm motor in it but I was a bit concerned about the shotgun ejection charges that some of the Estes D12's have.

    I thought maybe with an overenthusiastic ejection charge, the BT-20 may be a bit too restrictive and blown the model in half so I stuck with an 18mm motor mount.

    That would be bad.
    Now I have the data I need...assuming I ever get done wading through "Estes".
    __________________
    John A. Lee O.S.L.
    Alamo Rocketeers NAR Section 661
    NAR 87285, L1 8 March 2008
    TRA 03040, L1 8 March 2008

    Photos of the "Fleet": http://www.flickr.com/photos/23694991@N03/

    I used to tell Mom, "...I want to fly rockets when I grow up!"

    She said, "Make up your mind, you can't do both!"

  20. #20
    Join Date
    11th December 2011
    Location
    Selma CA
    Posts
    138

    SCALE - Nike Ajax Gallery (MIM 3)

    Quote Originally Posted by JAL3 View Post
    Is it a scratch or kit? If the latter, which one.

    Thanks for sharing.
    It is TLP kit
    Trackers are worth it

  21. #21
    Join Date
    18th January 2009
    Location
    San Antonio, TX
    Posts
    11,790
    Bump for editing
    __________________
    John A. Lee O.S.L.
    Alamo Rocketeers NAR Section 661
    NAR 87285, L1 8 March 2008
    TRA 03040, L1 8 March 2008

    Photos of the "Fleet": http://www.flickr.com/photos/23694991@N03/

    I used to tell Mom, "...I want to fly rockets when I grow up!"

    She said, "Make up your mind, you can't do both!"

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
