    Gemini Titan 1/35 build

    I've shown some pictures in my 1/35 Mercury Atlas thread, but I decided it's time to fork the threads.

    I'll do some catch up later - but here's tonight's progress.

    Click image for larger version.

Name:	ImageUploadedByRocketry Forum1495595914.510537.jpg
Views:	73
Size:	975.4 KB
ID:	320687

    I think the 6" flexie turned out too small, though I do want a speedy descent - with just the capsule. I have carbon rod handy for an 8".

    Charles McGonegal
    Ciderwright at AeppelTreow Winery & Distillery
    www.appletrue.com
    NAR #103560 L1 6/25/17 Estes Leviathan CTI H175-SS
    Ad Astra Tabernamque!

  2. #2
    Join Date
    12th September 2013
    Location
    SE Wisconsin
    Posts
    870
    Recap:

    The Estes 2111 Mercury Atlas inspired me to start working on my own Rocket Garden. The 1/35 scale is tough to duplicate, but I've started winding my own paper body tubes for the 3.44" size.

    Side by side, the early vision:

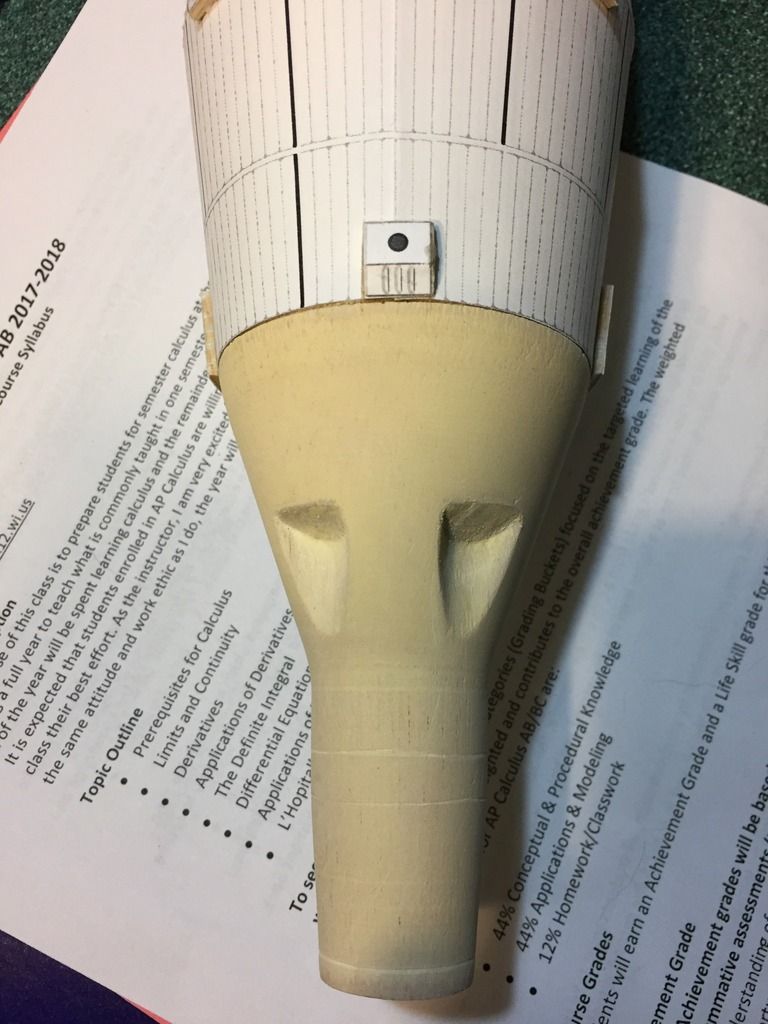

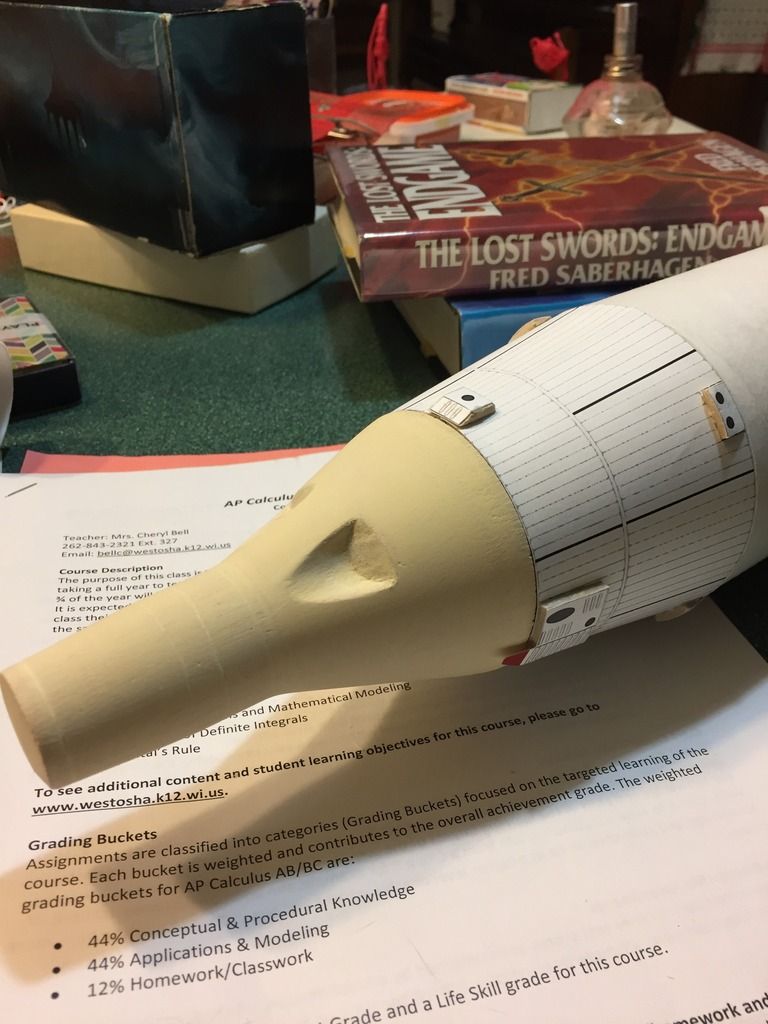

    The Gemini capsule is a Sandman creation. I used the paper model from the Lower Hudson Valley Challenger Center (1/48 scaled to 1/35) as a guide.



    I made a mistake and cut the windows square to the long axis, rather than sloped. I fixed it later with epoxy putty. Seen here during filling/sealing. You can see that I also filled in the adapter skirt detailed with cardstock covered balsa. The skirt is a cardstock transition from BT80 to T344 and is foam filled with an ounce of sinkers embedded (sims suggested the need for a little more nose weight)





    Down at the other end, the motor mount is progressing. The high school's laser cutter makes centering rings easy - though the OD was a couple hundredths off - I made it up with cardstock. 3.5 degrees, coming up.


    Charles McGonegal
    Ciderwright at AeppelTreow Winery & Distillery
    www.appletrue.com
    NAR #103560 L1 6/25/17 Estes Leviathan CTI H175-SS
    Ad Astra Tabernamque!

  3. #3
    Join Date
    12th September 2013
    Location
    SE Wisconsin
    Posts
    870
    Well, it turns out that spiral filling your home tubes requires more surface prep than I did. Sanding the wood filler fuzzied up the paper - which the primer made stand on end. Several sand and primer later, I'm almost ready to move on.

    I did find that wood hardener on the paper -before- the sand and prime helps.

    Tonight pictures show the capsule and adapter, pretty much wrapped up. I tried doing fine detail decals - but they don't show on the black. The United States is done on white decal paper with a printed black background. Blends in okay.

    The band around the adapter is the stick from the flags they use to mark utility lines in the back yard, sanded into a half-round.

    Click image for larger version.

Name:	ImageUploadedByRocketry Forum1496369683.439142.jpg
Views:	60
Size:	869.1 KB
ID:	321204
    Click image for larger version.

Name:	ImageUploadedByRocketry Forum1496369698.385306.jpg
Views:	61
Size:	765.8 KB
ID:	321205
    Click image for larger version.

Name:	ImageUploadedByRocketry Forum1496369709.615902.jpg
Views:	63
Size:	909.6 KB
ID:	321206
    Charles McGonegal
    Ciderwright at AeppelTreow Winery & Distillery
    www.appletrue.com
    NAR #103560 L1 6/25/17 Estes Leviathan CTI H175-SS
    Ad Astra Tabernamque!

  4. #4
    Join Date
    12th September 2013
    Location
    SE Wisconsin
    Posts
    870
    While waiting for the primer to dry on the second stage, I was perusing various Gemini plans. I realized I was nearly cloning the Estes K-11 kit. So I'm going to use it for a few more details.

    Like these by the motors.

    Click image for larger version.

Name:	ImageUploadedByRocketry Forum1496432839.855731.jpg
Views:	62
Size:	748.0 KB
ID:	321261
    Charles McGonegal
    Ciderwright at AeppelTreow Winery & Distillery
    www.appletrue.com
    NAR #103560 L1 6/25/17 Estes Leviathan CTI H175-SS
    Ad Astra Tabernamque!

  5. #5
    Join Date
    12th September 2013
    Location
    SE Wisconsin
    Posts
    870
    Here she is, dressed out and painted. Now I have to go backwards and retrofit fins on. And then put in recovery.

    Click image for larger version.

Name:	ImageUploadedByRocketry Forum1498134106.538456.jpg
Views:	74
Size:	645.5 KB
ID:	322653
    Click image for larger version.

Name:	ImageUploadedByRocketry Forum1498134122.208377.jpg
Views:	66
Size:	832.9 KB
ID:	322654
    Click image for larger version.

Name:	ImageUploadedByRocketry Forum1498134137.719271.jpg
Views:	74
Size:	818.6 KB
ID:	322655
    Charles McGonegal
    Ciderwright at AeppelTreow Winery & Distillery
    www.appletrue.com
    NAR #103560 L1 6/25/17 Estes Leviathan CTI H175-SS
    Ad Astra Tabernamque!

  6. #6
    Join Date
    27th October 2009
    Location
    Brigham City, UT
    Posts
    2,009
    Looks really good!! Did you do something special for the capsule windows? It looks like one of the system tunnel lines are the launch lugs. I would think that retro-fitting the fins will be a challenge.

  7. #7
    Join Date
    12th September 2013
    Location
    SE Wisconsin
    Posts
    870
    The capsule windows are painted gold. Seemed niftier to make it look like reflected sunlight than a more realistic 'fogged with astronaut sweat'

    Yes, the opposite side line is 1/4" ID tube, though to be honest, the friction from such a long line is higher than I like. I'll try 3/16" rod, and I may just put rail guides on.

    Once I decided not to try a clear fincan, like the Estes KS21, I put in a little more surface detail on the bottom. I DID forget to put masking down at the planned fin locations before the first coat. Whoops.
    Charles McGonegal
    Ciderwright at AeppelTreow Winery & Distillery
    www.appletrue.com
    NAR #103560 L1 6/25/17 Estes Leviathan CTI H175-SS
    Ad Astra Tabernamque!

  8. #8
    Join Date
    19th February 2017
    Location
    The world, probably
    Posts
    58
    That's a nice looking rocket, especially the LR-87ish motor mount... I don't suppose there are too many Aerozine/NTO model rocket motors, but other than that, I like it!
    crmrc.org

  9. #9
    Join Date
    27th August 2011
    Location
    NJ
    Posts
    2,711
    beautiful job!!!

    Quote Originally Posted by Charles_McG View Post
    Here she is, dressed out and painted. Now I have to go backwards and retrofit fins on. And then put in recovery.

    Click image for larger version.

Name:	ImageUploadedByRocketry Forum1498134106.538456.jpg
Views:	74
Size:	645.5 KB
ID:	322653
    Click image for larger version.

Name:	ImageUploadedByRocketry Forum1498134122.208377.jpg
Views:	66
Size:	832.9 KB
ID:	322654
    Click image for larger version.

Name:	ImageUploadedByRocketry Forum1498134137.719271.jpg
Views:	74
Size:	818.6 KB
ID:	322655

  10. #10
    Join Date
    12th September 2013
    Location
    SE Wisconsin
    Posts
    870
    1/100 scale trio.

    Click image for larger version.

Name:	ImageUploadedByRocketry Forum1498787968.465172.jpg
Views:	53
Size:	816.3 KB
ID:	323136
    Charles McGonegal
    Ciderwright at AeppelTreow Winery & Distillery
    www.appletrue.com
    NAR #103560 L1 6/25/17 Estes Leviathan CTI H175-SS
    Ad Astra Tabernamque!

  11. #11
    Join Date
    30th January 2016
    Location
    US > OK > NE
    Posts
    2,629
    Quote Originally Posted by Charles_McG View Post
    1/100 scale trio.

    Click image for larger version.

Name:	ImageUploadedByRocketry Forum1498787968.465172.jpg
Views:	53
Size:	816.3 KB
ID:	323136
    That is a very pretty picture.

  12. #12
    Join Date
    12th September 2013
    Location
    SE Wisconsin
    Posts
    870
    Fins.

    These gave me trouble. I glued the wrong edge down on -two- of them. Got epoxy on my nice clear fins.

    Click image for larger version.

Name:	ImageUploadedByRocketry Forum1498867295.474721.jpg
Views:	40
Size:	770.4 KB
ID:	323167
    Charles McGonegal
    Ciderwright at AeppelTreow Winery & Distillery
    www.appletrue.com
    NAR #103560 L1 6/25/17 Estes Leviathan CTI H175-SS
    Ad Astra Tabernamque!

  13. #13
    Join Date
    27th October 2009
    Location
    Brigham City, UT
    Posts
    2,009
    In this picture I cannot see the defects, so things look pretty good. Working with clear plastic see-through fins has it's challenges no matter what the scale. Are these through-the-wall fins?

  14. #14
    Join Date
    12th September 2013
    Location
    SE Wisconsin
    Posts
    870
    It will look great from launch pad distance.

    The fins are just surface mounted. I'm not planning on pushing this rocket hard.
    Charles McGonegal
    Ciderwright at AeppelTreow Winery & Distillery
    www.appletrue.com
    NAR #103560 L1 6/25/17 Estes Leviathan CTI H175-SS
    Ad Astra Tabernamque!

  15. #15
    Join Date
    12th September 2013
    Location
    SE Wisconsin
    Posts
    870
    I got distracted by my Father's Day present.
    Click image for larger version.

Name:	ImageUploadedByRocketry Forum1500217075.198174.jpg
Views:	31
Size:	746.7 KB
ID:	324053
    Charles McGonegal
    Ciderwright at AeppelTreow Winery & Distillery
    www.appletrue.com
    NAR #103560 L1 6/25/17 Estes Leviathan CTI H175-SS
    Ad Astra Tabernamque!

  16. #16
    Join Date
    17th January 2011
    Location
    Spring Green WI
    Posts
    2,509
    Charles very nice work. See you at the Bong.
