  1. #31
    Join Date
    18th January 2009
    Location
    Virginia - Central
    Posts
    3,771
    Quote Originally Posted by rharshberger View Post
    That's the line representing the Liberty Bell, which was the name of the capsule. The flight was MR-4 and the capsule was named Liberty Bell 7, Gus Grissom was the astronaut.
    ...that "crack" is why Gus's capsule sank. LOL

    We got two categories of pilots around here. We got your prime pilots that get all the hot planes, and we got your pud-knockers who DREAM about getting the hot planes.
    Now what are you two pud-knockers gonna have?... Huh?
    Pancho Barnes-
    The Right Stuff
    http://www.mwavs.com/0053148414/M4RS...udknockers.m4r

    Tripoli #2747

  2. #32
    Join Date
    12th September 2013
    Location
    SE Wisconsin
    Posts
    762
    Quote Originally Posted by cruzsergio View Post
    Isn't the same tubing of the current Little Joe II?
    Looks like it might be

    Charles McGonegal
    Ciderwright
    AeppelTreow Winery & Distillery
    www.appletrue.com
    Ad Astra Tabernamque!

  3. #33
    Join Date
    27th October 2009
    Location
    Brigham City, UT
    Posts
    1,945
    The diameter of the Estes Atlas tube should be 120/35 = 3.429" , which looks to be an odd ball size. As I recall Balsa Machining Services does not have it.

    BTW the Gemin-Titan next to the Atlas Mercury in the same scale looks really cool!

  4. #34
    Join Date
    12th September 2013
    Location
    SE Wisconsin
    Posts
    762

    Estes 2111 Mercury Atlas build

    I'm building my own 'Rocket Garden' in both 1/100 and 1/35.

    The Saturn 1B will be doable at 1/100. But 1/35???

    I've seen the MA tube listed as T344 and T342. My homemade tube is a bit thickwalled. But it'll do.
    Charles McGonegal
    Ciderwright
    AeppelTreow Winery & Distillery
    www.appletrue.com
    Ad Astra Tabernamque!

  5. #35
    Join Date
    19th February 2012
    Location
    Homestead FL
    Posts
    580
    Quote Originally Posted by Charles_McG View Post
    I've seen the MA tube listed as T344 and T342.
    Do you think you could provide a link?
    NAR# 93838 L1
    #745 HPRC

    Sergio Cruz

  6. #36
    Join Date
    18th January 2009
    Location
    Virginia - Central
    Posts
    3,771
    Quote Originally Posted by Charles_McG View Post
    I'm building my own 'Rocket Garden' in both 1/100 and 1/35.
    The Saturn 1B will be doable at 1/100. But 1/35???
    hmmm. Maybe. Go for it.
    We got two categories of pilots around here. We got your prime pilots that get all the hot planes, and we got your pud-knockers who DREAM about getting the hot planes.
    Now what are you two pud-knockers gonna have?... Huh?
    Pancho Barnes-
    The Right Stuff
    http://www.mwavs.com/0053148414/M4RS...udknockers.m4r

    Tripoli #2747

  7. #37
    Join Date
    12th September 2013
    Location
    SE Wisconsin
    Posts
    762

    Estes 2111 Mercury Atlas build

    Quote Originally Posted by cruzsergio View Post
    Do you think you could provide a link?
    Not listed by a producer. Listed in reference collections of Estes kits, or in reviews of the kit. I never found a supplier. Randy at eRockets says he can't do this size. So I had to roll my own.
    Charles McGonegal
    Ciderwright
    AeppelTreow Winery & Distillery
    www.appletrue.com
    Ad Astra Tabernamque!

  8. #38
    Join Date
    12th September 2013
    Location
    SE Wisconsin
    Posts
    762
    Sanded the Atlas today. Now to wait for more paint clement weather.

    Worked on the Gemini, too.

    After much hand wringing, I jumped in, using the 1/48 paper model (scaled) as a guide to cut the window coves.

    By eyeball, the biggest borer I had (0.6") looked pretty good. Lined up with the paper great.



    I cut out the back face with an exacto. Carefully.



    Charles McGonegal
    Ciderwright
    AeppelTreow Winery & Distillery
    www.appletrue.com
    Ad Astra Tabernamque!

  9. #39
    Join Date
    27th March 2013
    Location
    Has Changed
    Posts
    8,886
    How did I miss this? I'm in...
    Dreaming of making the rockets I dreamed of as a kid (and then some).


    NAR L1 Cert flight: Sheridan, Oregon, USA. Sept. 19, 2015. Flew Deep Space OFFl on an I357T-14A Blue Thunder

  10. #40
    Join Date
    13th October 2014
    Location
    SouthEastern, WA
    Posts
    5,046
    Charles, what kind of boring tool is that? Looks like it might have many types of uses in modeling.
    Rich

    NAR# 99154

    L3-4x upscale Estes Cherokee-D- AT M1297W 5/28/2016 http://www.rocketryforum.com/showthr...r-rharshberger

    TriCities Rocketeers NAR section# 736 http://www.tricitiesrocketeers.org/

  11. #41
    Join Date
    12th September 2013
    Location
    SE Wisconsin
    Posts
    762
    Click image for larger version.

Name:	ImageUploadedByRocketry Forum1493727590.472054.jpg
Views:	34
Size:	980.1 KB
ID:	319058

    Cork / stopper borers. Common in labs to cut holes in stoppers to run tubing through. They come in nested sets. Usually brass, with/without nickel plating. They have a knife edge at the bottom.

    They cut through the balsa end grain like butter. I don't know how they would fair cross grain. It was just the tool for this job, though.
    Charles McGonegal
    Ciderwright
    AeppelTreow Winery & Distillery
    www.appletrue.com
    Ad Astra Tabernamque!

  12. #42
    Join Date
    13th October 2014
    Location
    SouthEastern, WA
    Posts
    5,046
    Thanks Charles!
    Rich

    NAR# 99154

    L3-4x upscale Estes Cherokee-D- AT M1297W 5/28/2016 http://www.rocketryforum.com/showthr...r-rharshberger

    TriCities Rocketeers NAR section# 736 http://www.tricitiesrocketeers.org/

  13. #43
    Join Date
    12th September 2013
    Location
    SE Wisconsin
    Posts
    762
    They also cut basswood nicely.

    Here's the 1/100 scale. Sized for BT-52H / 29mm motor mount. Also turned by the Sandman.

    Charles McGonegal
    Ciderwright
    AeppelTreow Winery & Distillery
    www.appletrue.com
    Ad Astra Tabernamque!

  14. #44
    Join Date
    18th January 2009
    Location
    Pittsburgh, PA or Cleveland, OH
    Posts
    806
    Quote Originally Posted by Charles_McG View Post
    Click image for larger version.

Name:	ImageUploadedByRocketry Forum1493727590.472054.jpg
Views:	34
Size:	980.1 KB
ID:	319058

    Cork / stopper borers. Common in labs to cut holes in stoppers to run tubing through. They come in nested sets. Usually brass, with/without nickel plating. They have a knife edge at the bottom.

    They cut through the balsa end grain like butter. I don't know how they would fair cross grain. It was just the tool for this job, though.
    I've seen guys cut conduit holes through stacked wing ribs with no problem. I imagine patience is the key.
    Brian J. Guzek
    NAR#86418, L1
    Clubs: Pittsburgh Space Command, Mantua Township Missile Association

    Competition Rocketry: Because three fins and a nosecone just doesn't cut it sometimes.

  15. #45
    Join Date
    12th September 2013
    Location
    SE Wisconsin
    Posts
    762
    Finally! Some progress. Had some painting challenges - some small patches of crazing.



    Had a little field trip, in the meantime.

    Charles McGonegal
    Ciderwright
    AeppelTreow Winery & Distillery
    www.appletrue.com
    Ad Astra Tabernamque!

  16. #46
    Join Date
    27th October 2009
    Location
    Brigham City, UT
    Posts
    1,945
    Judging by your location I would guess that is the Yerkes Observatory. It looks different than the old photographs I've seen. I lived in the Chicago area, but never got there. I'm hoping I will get back some day.

    Looking at your last Atlas photo I think I see a motor retainer. Are you going to use the bell nozzle shroud that comes with the kit?
    Last edited by aerostadt; 8th May 2017 at 05:15 PM.

  17. #47
    Join Date
    12th September 2013
    Location
    SE Wisconsin
    Posts
    762
    Yes, that's the big scope at Yerkes.

    I actually did use half of the provided bell. I cut it at the point it steps out - it's not a smooth curve like the outboard ones - and the threads of the retainer are nested inside it.

    I'm thinking of filing the knurls off the retainer, so it looks more like the original bell.
    Charles McGonegal
    Ciderwright
    AeppelTreow Winery & Distillery
    www.appletrue.com
    Ad Astra Tabernamque!

  18. #48
    Join Date
    12th September 2013
    Location
    SE Wisconsin
    Posts
    762

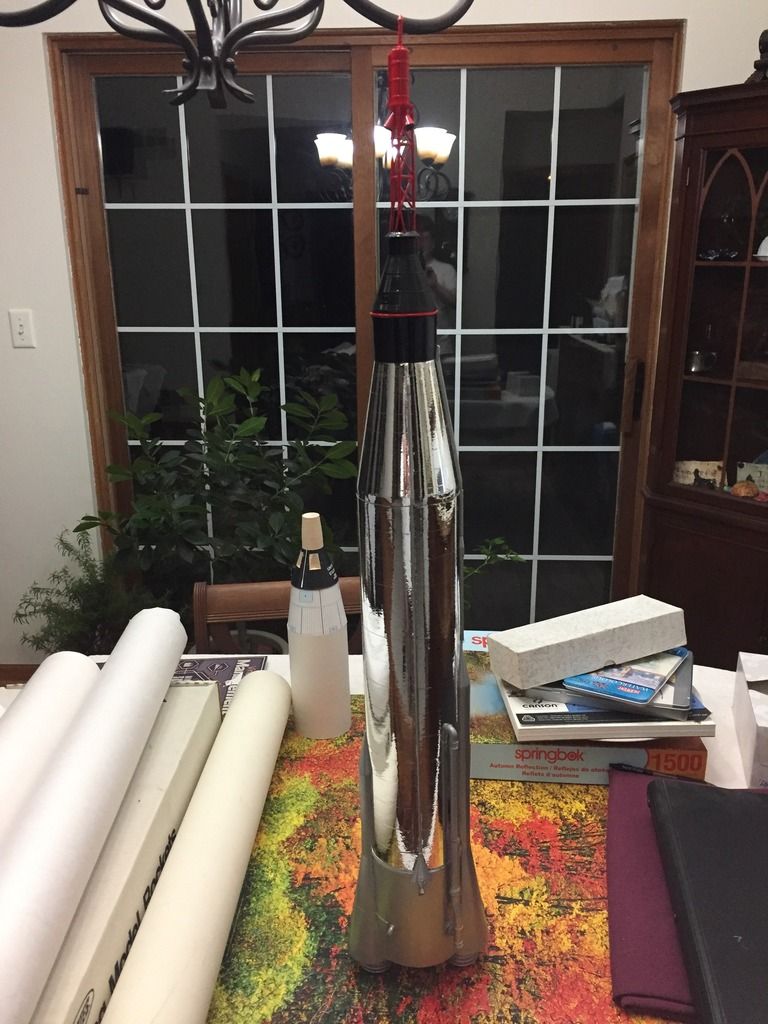

    We are silvered.



    What I learned: the squareness of the strips - how well the ends line up when they meet up 360 degrees later - drifts over the course of all little segments between the equipment pods. I squared it all up again by letting the gap be a little bigger than perfect. I wound up at the top with less than a mm hanging over.
    I do have a couple little wedge-like areas that won't stay stuck down. I'm thinking of wetting a toothpick with CA and making them stay down. I'll have to test it on the left over border scrap, first.
    Charles McGonegal
    Ciderwright
    AeppelTreow Winery & Distillery
    www.appletrue.com
    Ad Astra Tabernamque!

  19. #49
    Join Date
    12th September 2013
    Location
    SE Wisconsin
    Posts
    762

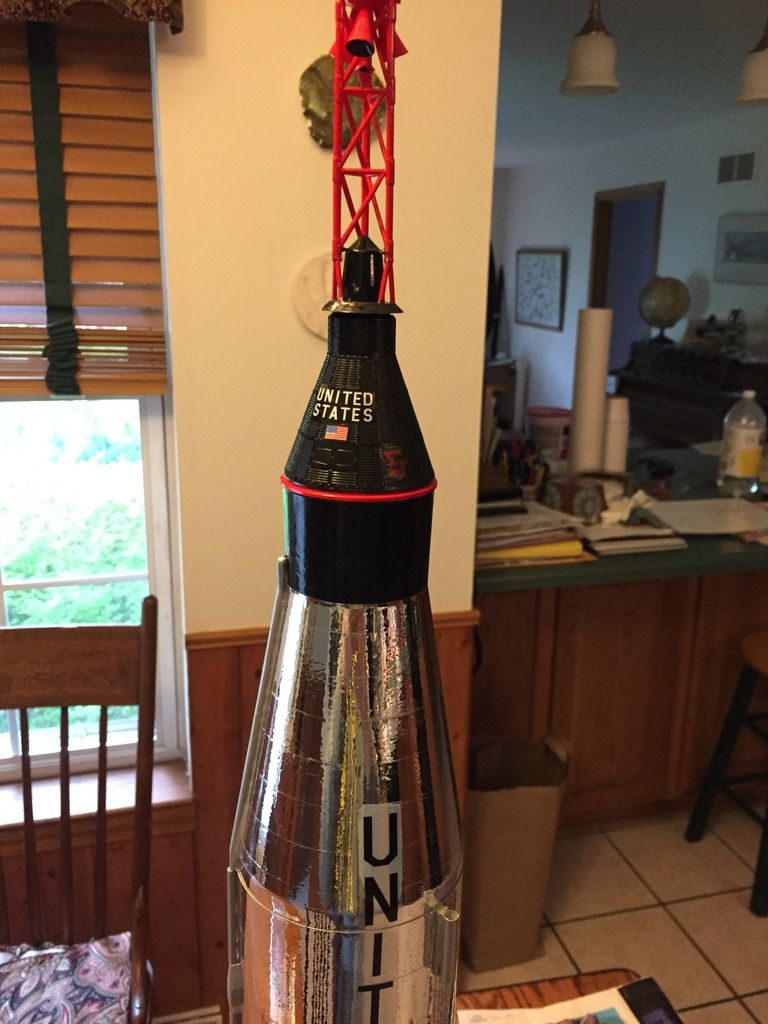

    I'm not going to paint the fins before flight. So here she is, with everything except chutes.



    I went for Wally Schirra's Sigma 7 flight - I like the logo.



    What I don't like are these decals. The capsule decals slid off the backer and laid down fine. But won't stay down. The Sigma 7 was brushed off and broke right after this picture. I'll have to reprint it. The booster decals ar the thickest, toughest I've ever seen. They wouldn't slide off - I had to peel them. The clear is a bit milky right now, but it looks like it might dry out okay. The decals have been the worst part of this build.
    Charles McGonegal
    Ciderwright
    AeppelTreow Winery & Distillery
    www.appletrue.com
    Ad Astra Tabernamque!

  20. #50
    Join Date
    3rd August 2011
    Location
    Reed City, Michigan
    Posts
    3,077
    If it wouldn't be too much to ask, can you take a close up of the windows you put in the capsule?
    Thank You Kindly

  21. #51
    Join Date
    12th September 2013
    Location
    SE Wisconsin
    Posts
    762

    Estes 2111 Mercury Atlas build

    I'm assuming you mean on the Gemini side project. I made some progress with the adapter skirt details. It's also now foam filled - nice and sturdy. I reprinted the skirt details on adhesive paper and overload the cardstock. The CA I used messed up the edges.

    I back filled the window coves with an epoxy wood putty. I had cut them square and they are supposed to be sloped.

    Click image for larger version.

Name:	ImageUploadedByRocketry Forum1495328814.454979.jpg
Views:	15
Size:	775.3 KB
ID:	320385Click image for larger version.

Name:	ImageUploadedByRocketry Forum1495328830.316970.jpg
Views:	17
Size:	756.0 KB
ID:	320386
    Charles McGonegal
    Ciderwright
    AeppelTreow Winery & Distillery
    www.appletrue.com
    Ad Astra Tabernamque!

  22. #52
    Join Date
    12th September 2013
    Location
    SE Wisconsin
    Posts
    762
    Thread fork. Gemini Titan continuing here:

    http://www.rocketryforum.com/showthread.php?t=140727

    Charles McGonegal
    Ciderwright
    AeppelTreow Winery & Distillery
    www.appletrue.com
    Ad Astra Tabernamque!
