  1. #31
    Join Date
    20th January 2009
    Location
    Salem, MA
    Posts
    8,351
    The Amazon ad says it's a 5 mm extrusion. That should be roughly equivalent to a 1/4" rod in stiffness.

    Here's some useful information. http://www.evilmadscientist.com/2015/nanobeam2/ The slot width is likely ~ 1.5 mm or ~0.059"

    The fastener screws are tiny: M1.2x2. http://www.metricscrews.us/index.php...ath=70_216_218 And pricy.

    You will probably need to use screws instead of rail buttons unless you have rail buttons that glue on to the airframe. But using a tap that small is not easy.

    A better alternate might be a plastic or metal rail guide that use double-sided tape or glue on.

    It also appears the standard length is 300 mm (12") which is short for a launch rail.

    My personal opinion is that it's probably too small for hobby rocket use.

    Bob


  2. #32
    Join Date
    13th October 2014
    Location
    SouthEastern, WA
    Posts
    5,146
    Quote Originally Posted by bobkrech View Post
    The Amazon ad says it's a 5 mm extrusion. That should be roughly equivalent to a 1/4" rod in stiffness.

    Here's some useful information. http://www.evilmadscientist.com/2015/nanobeam2/ The slot width is likely ~ 1.5 mm or ~0.059"

    The fastener screws are tiny: M1.2x2. http://www.metricscrews.us/index.php...ath=70_216_218 And pricy.

    You will probably need to use screws instead of rail buttons unless you have rail buttons that glue on to the airframe. But using a tap that small is not easy.

    A better alternate might be a plastic or metal rail guide that use double-sided tape or glue on.

    It also appears the standard length is 300 mm (12") which is short for a launch rail.

    My personal opinion is that it's probably too small for hobby rocket use.

    Bob
    Plastruct/Evergreen Plastics H or I beams could be used as a rail guide, I am working with something similar for LPR rockets on 10mm Makerbeam.

    Rich

    NAR# 99154

    L3-4x upscale Estes Cherokee-D- AT M1297W 5/28/2016 http://www.rocketryforum.com/showthr...r-rharshberger

    TriCities Rocketeers NAR section# 736 http://www.tricitiesrocketeers.org/

  3. #33
    Join Date
    21st May 2014
    Location
    Gardendale, AL
    Posts
    1,869
    Quote Originally Posted by bobkrech View Post
    The Amazon ad says it's a 5 mm extrusion. That should be roughly equivalent to a 1/4" rod in stiffness.

    Here's some useful information. http://www.evilmadscientist.com/2015/nanobeam2/ The slot width is likely ~ 1.5 mm or ~0.059"

    The fastener screws are tiny: M1.2x2. http://www.metricscrews.us/index.php...ath=70_216_218 And pricy.

    You will probably need to use screws instead of rail buttons unless you have rail buttons that glue on to the airframe. But using a tap that small is not easy.

    A better alternate might be a plastic or metal rail guide that use double-sided tape or glue on.

    It also appears the standard length is 300 mm (12") which is short for a launch rail.

    My personal opinion is that it's probably too small for hobby rocket use.

    Bob
    Bob you have to understand he's talking about using it for MicroMaxx rockets. These are 12" long. MicroMaxx only goes to 18" before deployment lol.
    NAR #99604 L2
    L1 - 08/15/15 - Estes Partizon - Aerotech H128W - Birmingham, AL
    L2 - 02/04/17 - MadCow 4" PAC-3 - Aerotech J350W - Talladega, AL
    L3 - TBD

  4. #34
    Join Date
    9th August 2013
    Location
    Vermont
    Posts
    9,907
    Quote Originally Posted by bobkrech View Post
    The Amazon ad says it's a 5 mm extrusion. That should be roughly equivalent to a 1/4" rod in stiffness.

    Here's some useful information. http://www.evilmadscientist.com/2015/nanobeam2/ The slot width is likely ~ 1.5 mm or ~0.059"

    The fastener screws are tiny: M1.2x2. http://www.metricscrews.us/index.php...ath=70_216_218 And pricy.

    You will probably need to use screws instead of rail buttons unless you have rail buttons that glue on to the airframe. But using a tap that small is not easy.

    A better alternate might be a plastic or metal rail guide that use double-sided tape or glue on.

    It also appears the standard length is 300 mm (12") which is short for a launch rail.

    My personal opinion is that it's probably too small for hobby rocket use.

    Bob
    It's definitely only good for Micromaxx sized rockets.




    As we shall all see in due time.
    Ph'nglui mglw'nafh Cthulhu R'lyeh wgah'nagl fhtagn

  5. #35
    Join Date
    9th August 2013
    Location
    Vermont
    Posts
    9,907
    Quote Originally Posted by Kruegon View Post
    Bob you have to understand he's talking about using it for MicroMaxx rockets. These are 12" long. MicroMaxx only goes to 18" before deployment lol.

    Ph'nglui mglw'nafh Cthulhu R'lyeh wgah'nagl fhtagn

  6. #36
    Join Date
    20th January 2009
    Location
    Salem, MA
    Posts
    8,351
    Quote Originally Posted by rharshberger View Post
    Plastruct/Evergreen Plastics H or I beams could be used as a rail guide, I am working with something similar for LPR rockets on 10mm Makerbeam.
    Yes. It might work. Looks like the 2 mm H-column would be a good match to the channel. Since it's styrene it is easily bent with heat so it will conform with the curvature of the body tube. I don't think the 1.5 mm is wide enough to stay in the channel, and the 2.5 mm may be too wide and/or have too much drag.

    http://www.oakridgehobbies.com/hobby...ll-scales.html

    Bob

  7. #37
    Join Date
    13th October 2014
    Location
    SouthEastern, WA
    Posts
    5,146
    That's the stuff Bob, the .188 (4.8mm) H column is a nice fit for the 10mm Makerbeam so far, it slides easy in testing but I have no idea how well it will wear.
    Rich

    NAR# 99154

    L3-4x upscale Estes Cherokee-D- AT M1297W 5/28/2016 http://www.rocketryforum.com/showthr...r-rharshberger

    TriCities Rocketeers NAR section# 736 http://www.tricitiesrocketeers.org/

  8. #38
    Join Date
    18th January 2009
    Location
    Homewood, AL
    Posts
    3,419
    Quote Originally Posted by rharshberger View Post
    Plastruct/Evergreen Plastics H or I beams could be used as a rail guide, I am working with something similar for LPR rockets on 10mm Makerbeam.
    I have used plastic "H" Beam for lugs on rails. Including my Space Shuttle model. For it, I used 1/4" "H" beam from Evergreen.

    However 1/4" "H" can slip out of the 1 x 1 rails, I was using my own homemade rail that has about a 1/8" wide slot. For 1 x 1 rail, it requires more like 3/8" "H" (Maybe 5/16").

    In any case, I really like plastic "H" beam for rail lugs for many years, as it allows the model to be able to "rock" a bit in the yaw axis, and a loose slide fit (feature, not a bug). So if it is windy the lug does not bind like the rail buttons can.

    - George Gassaway

    Last edited by georgegassaway; 16th March 2016 at 07:03 AM.

    Contest flying, Sport flying, it's all good.....
    2016 Bike Mileage total: 1843 miles. 5 Miles a day for the year!

  9. #39
    Join Date
    20th January 2009
    Location
    Salem, MA
    Posts
    8,351
    Quote Originally Posted by rharshberger View Post
    That's the stuff Bob, the .188 (4.8mm) H column is a nice fit for the 10mm Makerbeam so far, it slides easy in testing but I have no idea how well it will wear.
    It should wear ok as long as it does not bind or slip out of the slot. The slot width is clearance for a M3 screw 3 mm + a smidge.


    Quote Originally Posted by georgegassaway View Post
    I have used plastic "H" Beam for lugs on rails. Including my Space Shuttle model. For it, I used 1/4" "H" beam from Evergreen.

    However 1/4" "H" can slip out of the 1 x 1 rails, I was using my own homemade rail that has about a 1/8" wide slot. For 1 x 1 rail, it requires more like 3/8" "H" (Maybe 5/16").

    In any case, I really like plastic "H" beam for rail lugs for many years, as it allows the model to be able to "rock" a bit in the yaw axis, and a loose slide fit (feature, not a bug). So if it is windy the lug does not bind like the rail buttons can.

    - George Gassaway

    The nominal slot width for rails 1.0" wide or less appears to be ~25%-30% of the width. 1010 rails are 1.000" wide and have a slot width 0f 0.255" with is 25% of the beam width + 2%. The 5 mm nanorail uses M1.2x2 screws so the slot width is likely 1.25 mm. 10 mm maker rail has a 30% wide slot.

    20 mm rail has a 5.26 mm slot for M5 screws, 25 mm rail uses a M6 screw which I assume has a 6.26 mm slot which is 0.247" and just narrow enough that a 1/4=20 screw won't fit.

    Bob

  10. #40
    Join Date
    9th August 2013
    Location
    Vermont
    Posts
    9,907
    For the Nanobeam MMX, I will likely use a tack/nail. the really tiny ones like you would use to assemble a jewelry box or whatever.
    Since there will be no recovery gear to contend with, they can go "Through Both Walls", affixed with a drip of CA, then sanded smooth on the exit side, but leaving just enough protruding on the exit side to embed in the glass cloth when it is applied.
    The model I envision will be an AIM-120 AMRAAM, and being long enough, the lower tack/nail guide will also serve as the motor stop.

    This will be fun!
    Ph'nglui mglw'nafh Cthulhu R'lyeh wgah'nagl fhtagn

  11. #41
    Join Date
    25th January 2009
    Location
    Glennville, GA
    Posts
    17,808
    I have 10 nanobeams now. I knew they were 5mm x 5mm but man this is small.
    -----------------------
    Chuck Haislip
    NAR/Tripoli Level 3
    Formerly a Prefect of ICBM - TRA #60

    Level 1 - LOC Minie Magg; Level 2 - PR Broken Arrow;
    Level 3 - 10 inch Nike Smoke
    2015 Ns for Year: 1315 Newtons
    My rockets usually fly naked. If they survive, they earn their paint.

    Come fly with ROSCo or ICBM in Camden SC => http://rocketrysouthcarolina.org

  12. #42
    Join Date
    21st May 2014
    Location
    Gardendale, AL
    Posts
    1,869
    Nanobeams for micromaxx? Where will you possibly find rail buttons for them?
    NAR #99604 L2
    L1 - 08/15/15 - Estes Partizon - Aerotech H128W - Birmingham, AL
    L2 - 02/04/17 - MadCow 4" PAC-3 - Aerotech J350W - Talladega, AL
    L3 - TBD

  13. #43
    Join Date
    13th October 2014
    Location
    SouthEastern, WA
    Posts
    5,146
    After looking at the dimensioned drawing for Nanobeams a M1.6 screw might work for a button.


    Click image for larger version.

Name:	add-4454-300-1.png
Views:	63
Size:	18.3 KB
ID:	285465
    Rich

    NAR# 99154

    L3-4x upscale Estes Cherokee-D- AT M1297W 5/28/2016 http://www.rocketryforum.com/showthr...r-rharshberger

    TriCities Rocketeers NAR section# 736 http://www.tricitiesrocketeers.org/

  14. #44
    Join Date
    25th January 2009
    Location
    Glennville, GA
    Posts
    17,808
    A screw could work. I will post more soon.
    -----------------------
    Chuck Haislip
    NAR/Tripoli Level 3
    Formerly a Prefect of ICBM - TRA #60

    Level 1 - LOC Minie Magg; Level 2 - PR Broken Arrow;
    Level 3 - 10 inch Nike Smoke
    2015 Ns for Year: 1315 Newtons
    My rockets usually fly naked. If they survive, they earn their paint.

    Come fly with ROSCo or ICBM in Camden SC => http://rocketrysouthcarolina.org

  15. #45
    Join Date
    18th January 2009
    Location
    Colorado
    Posts
    813
    Quote Originally Posted by rharshberger View Post
    Plastruct/Evergreen Plastics H or I beams could be used as a rail guide, I am working with something similar for LPR rockets on 10mm Makerbeam.
    Here is Evergreen 286 in my MakerBeam. By the way, Amazon has restocked the MakerBeam rails and accessories.

    Click image for larger version.

Name:	image.jpg
Views:	110
Size:	60.2 KB
ID:	285495
    Lee Reep
    NAR 55948, L2
    Build Queue: Honest John, Mars Snooper
    Awaiting Paint/Detailing: Interceptor-E, Saturn 1B

  16. #46
    Join Date
    13th October 2014
    Location
    SouthEastern, WA
    Posts
    5,146
    Quote Originally Posted by Trident View Post
    Here is Evergreen 286 in my MakerBeam. By the way, Amazon has restocked the MakerBeam rails and accessories.

    Click image for larger version.

Name:	image.jpg
Views:	110
Size:	60.2 KB
ID:	285495
    #286 very same on I have for use with my 10mm Makerbeam, a smaller version might work for CWBullets application.
    Rich

    NAR# 99154

    L3-4x upscale Estes Cherokee-D- AT M1297W 5/28/2016 http://www.rocketryforum.com/showthr...r-rharshberger

    TriCities Rocketeers NAR section# 736 http://www.tricitiesrocketeers.org/

  17. #47
    Join Date
    25th January 2009
    Location
    Glennville, GA
    Posts
    17,808
    I ordered a piece to try. More to come.
    -----------------------
    Chuck Haislip
    NAR/Tripoli Level 3
    Formerly a Prefect of ICBM - TRA #60

    Level 1 - LOC Minie Magg; Level 2 - PR Broken Arrow;
    Level 3 - 10 inch Nike Smoke
    2015 Ns for Year: 1315 Newtons
    My rockets usually fly naked. If they survive, they earn their paint.

    Come fly with ROSCo or ICBM in Camden SC => http://rocketrysouthcarolina.org

  18. #48
    Join Date
    9th August 2013
    Location
    Vermont
    Posts
    9,907
    Quote Originally Posted by Kruegon View Post
    Nanobeams for micromaxx? Where will you possibly find rail buttons for them?
    I was imagining that these would work:

    Click image for larger version.

Name:	Nanobutton 2002-12-31 003.jpg
Views:	75
Size:	88.6 KB
ID:	285514


    I'll know for sure next month.
    Ph'nglui mglw'nafh Cthulhu R'lyeh wgah'nagl fhtagn

  19. #49
    Join Date
    21st May 2014
    Location
    Gardendale, AL
    Posts
    1,869
    Got my Makerbeam rails today. I'm figuring A, B, & C engines for micro. And D, E, F, & G for mini. Lastly H+ will use 1010 buttons so long as the weight is appropriate.

    I may explore the Nanobeam for T engines and below depending on BT size.

    Thoughts?
    NAR #99604 L2
    L1 - 08/15/15 - Estes Partizon - Aerotech H128W - Birmingham, AL
    L2 - 02/04/17 - MadCow 4" PAC-3 - Aerotech J350W - Talladega, AL
    L3 - TBD

  20. #50
    Join Date
    25th January 2009
    Location
    Glennville, GA
    Posts
    17,808
    Ok,

    I bought some nanobeam rails. They work with some of the of the H and I beams I bought. I will post pictures this week.
    -----------------------
    Chuck Haislip
    NAR/Tripoli Level 3
    Formerly a Prefect of ICBM - TRA #60

    Level 1 - LOC Minie Magg; Level 2 - PR Broken Arrow;
    Level 3 - 10 inch Nike Smoke
    2015 Ns for Year: 1315 Newtons
    My rockets usually fly naked. If they survive, they earn their paint.

    Come fly with ROSCo or ICBM in Camden SC => http://rocketrysouthcarolina.org

  21. #51
    Join Date
    9th August 2013
    Location
    Vermont
    Posts
    9,907
    Quote Originally Posted by Kruegon View Post
    Got my Makerbeam rails today. I'm figuring A, B, & C engines for micro. And D, E, F, & G for mini. Lastly H+ will use 1010 buttons so long as the weight is appropriate.

    I may explore the Nanobeam for T engines and below depending on BT size.

    Thoughts?
    I think that the Nanobeam, being only a foot long, would be too short for Estes Mini-motors.

    I think I'll go screw some microbuttons into my 13mm Fiberglassed AIM-120 AMRAAM now, as I can launch that right in my front yard on 1/2 A motors, and I have not even tried 13mm on makerbeam yet.
    I can fly it tomorrow.
    Ph'nglui mglw'nafh Cthulhu R'lyeh wgah'nagl fhtagn

  22. #52
    Join Date
    25th January 2009
    Location
    Glennville, GA
    Posts
    17,808
    Quote Originally Posted by bobkrech View Post
    The Amazon ad says it's a 5 mm extrusion. That should be roughly equivalent to a 1/4" rod in stiffness.
    Bob,

    It is a lot more stiff than 1/4" rod. Well, it is stiffer than 1/4" aluminum rod.
    -----------------------
    Chuck Haislip
    NAR/Tripoli Level 3
    Formerly a Prefect of ICBM - TRA #60

    Level 1 - LOC Minie Magg; Level 2 - PR Broken Arrow;
    Level 3 - 10 inch Nike Smoke
    2015 Ns for Year: 1315 Newtons
    My rockets usually fly naked. If they survive, they earn their paint.

    Come fly with ROSCo or ICBM in Camden SC => http://rocketrysouthcarolina.org

  23. #53
    Join Date
    25th January 2009
    Location
    Glennville, GA
    Posts
    17,808
    Quote Originally Posted by TopRamen View Post
    I think that the Nanobeam, being only a foot long, would be too short for Estes Mini-motors.
    Correct. I bought a couple joining plates to make it 30-36". I like the fact that it will fit in a 5/16" standard launch pad mount.
    -----------------------
    Chuck Haislip
    NAR/Tripoli Level 3
    Formerly a Prefect of ICBM - TRA #60

    Level 1 - LOC Minie Magg; Level 2 - PR Broken Arrow;
    Level 3 - 10 inch Nike Smoke
    2015 Ns for Year: 1315 Newtons
    My rockets usually fly naked. If they survive, they earn their paint.

    Come fly with ROSCo or ICBM in Camden SC => http://rocketrysouthcarolina.org

  24. #54
    Join Date
    9th August 2013
    Location
    Vermont
    Posts
    9,907

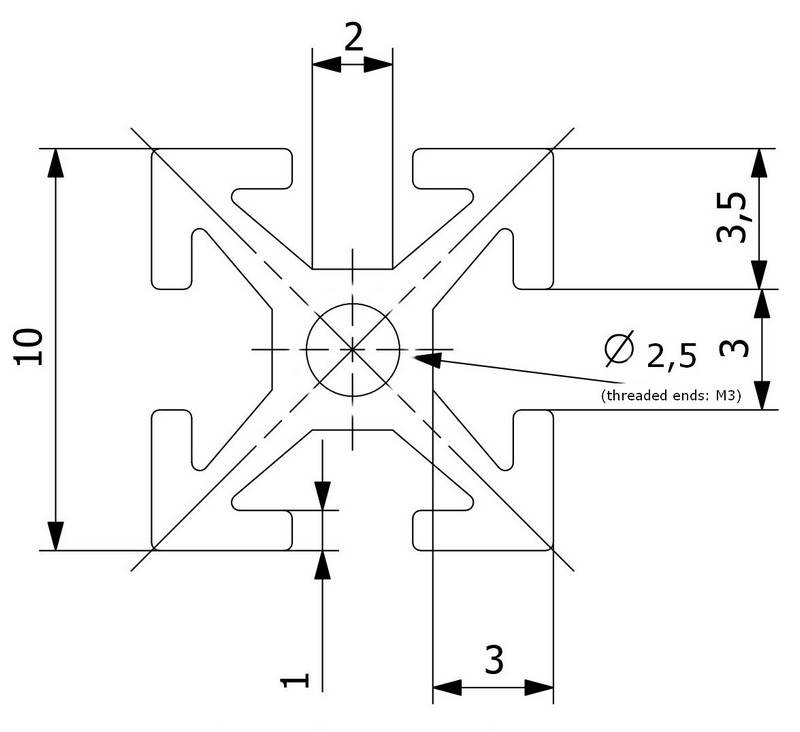

    My 13mm AIM-120 AMRAAM is ready to fly from makerbeam today.

    Just waiting for the camera battery to charge so I can get a video.

    Click image for larger version.

Name:	Rail Launch 13mm AIM-120 2002-12-31 001.jpg
Views:	98
Size:	92.7 KB
ID:	285892

    Click image for larger version.

Name:	Pad Preperation. 2002-12-31 004.jpg
Views:	88
Size:	76.0 KB
ID:	285897
    Last edited by TopRamen; 22nd March 2016 at 03:45 PM.
    Ph'nglui mglw'nafh Cthulhu R'lyeh wgah'nagl fhtagn

  25. #55
    Join Date
    21st May 2014
    Location
    Gardendale, AL
    Posts
    1,869
    Impressive. Superhero like even. Definitely makes me jealous.

    Can't get past NSL fast enough for the MMX. And it's way too close for my L2 kit lol. I can't win.
    NAR #99604 L2
    L1 - 08/15/15 - Estes Partizon - Aerotech H128W - Birmingham, AL
    L2 - 02/04/17 - MadCow 4" PAC-3 - Aerotech J350W - Talladega, AL
    L3 - TBD

  26. #56
    Join Date
    25th January 2009
    Location
    Glennville, GA
    Posts
    17,808
    Ok,

    I tested my "nanorail" with an Estes rocket on a C motor. The Styrene H-beam did not fit perfect, but with a little sanding it worked. I will post pics this weekend.

    I did not see any whip to the rod....ERR rail.
    -----------------------
    Chuck Haislip
    NAR/Tripoli Level 3
    Formerly a Prefect of ICBM - TRA #60

    Level 1 - LOC Minie Magg; Level 2 - PR Broken Arrow;
    Level 3 - 10 inch Nike Smoke
    2015 Ns for Year: 1315 Newtons
    My rockets usually fly naked. If they survive, they earn their paint.

    Come fly with ROSCo or ICBM in Camden SC => http://rocketrysouthcarolina.org

  27. #57
    Join Date
    9th February 2012
    Location
    Greenville SC
    Posts
    832
    Quote Originally Posted by cwbullet View Post
    Ok,

    I tested my "nanorail" with an Estes rocket on a C motor. The Styrene H-beam did not fit perfect, but with a little sanding it worked. I will post pics this weekend.

    I did not see any whip to the rod....ERR rail.
    Keep me updated, Chuck. I just purchased my first micro kits and I would really like to forego lugs altogether on all of my future builds. It would be really nice to have this option at our launches.

    Cheers,
    Michael
    ROSCO | ICBM

    There are a thousand things that can happen when you light a rocket engine, and only one of them is good. -Tom Mueller, SpaceX propulsion chief

  28. #58
    Join Date
    9th August 2013
    Location
    Vermont
    Posts
    9,907
    Well, so much for getting video. The video was able to playback the first time, then I get a message about how windows does not support the file or some such. Probably because the camera is from like 2000.
    The motor was a 1/2A-3T, so it went up like 75 feet, then as it came down it deployed at about 50 and bounced off three branches of a tree thanks to the wind, but made it to the ground.
    Anyhow, here's a look at the small machine screws I used.


    Click image for larger version.

Name:	Rail Launched 13mm AMRAAM Vid 2002-12-31 004.jpg
Views:	78
Size:	73.9 KB
ID:	285921


    I managed to open the video somehow, so I was able to upload it to Youtube, but I looked up the camera, an Olympus C-5000 Zoom, and it is from 2003, so that's why the video is so crappy. It does not even have a microphone for audio.

    https://www.youtube.com/watch?v=9RF6...ature=youtu.be
    Last edited by TopRamen; 22nd March 2016 at 09:53 PM.
    Ph'nglui mglw'nafh Cthulhu R'lyeh wgah'nagl fhtagn

  29. #59
    Join Date
    25th January 2009
    Location
    Glennville, GA
    Posts
    17,808
    I have not tried screws. I have some coming to try.
    -----------------------
    Chuck Haislip
    NAR/Tripoli Level 3
    Formerly a Prefect of ICBM - TRA #60

    Level 1 - LOC Minie Magg; Level 2 - PR Broken Arrow;
    Level 3 - 10 inch Nike Smoke
    2015 Ns for Year: 1315 Newtons
    My rockets usually fly naked. If they survive, they earn their paint.

    Come fly with ROSCo or ICBM in Camden SC => http://rocketrysouthcarolina.org

  30. #60
    Join Date
    9th August 2013
    Location
    Vermont
    Posts
    9,907
    Quote Originally Posted by cwbullet View Post
    I have not tried screws. I have some coming to try.
    I like them better than microbuttons because they don't bind at all. Some will say they will wear down the rail, but that would likely take more launches than I'll ever do, plus, rails have four sides, so if one side starts to develop a problematic wear pattern, I'll just use a different side.
    there are also things that could go around the threads to protect the rail, but it slides SO freely that I really don't think it is necessary.

    I got a whole bunch at the hardware store, and the ones pictured work best. I don't have the specs on them, but will probably grab some more next time I go by there, so I'll write it down.

    If they were not an afterthought for this particular rocket, I'de have made them look nicer. I just wanted to be able to say I've flown 13mm from a rail.

    Last edited by TopRamen; 22nd March 2016 at 09:07 PM.
    Ph'nglui mglw'nafh Cthulhu R'lyeh wgah'nagl fhtagn

Similar Threads

  1. Anybody know where I got this rail button from?
    By Tronman in forum Ground Support
    Replies: 11
    Last Post: 1st May 2014, 10:33 PM
  2. Rail button spacing and rail length Qs
    By BeerorKid in forum The Watering Hole
    Replies: 13
    Last Post: 1st June 2013, 08:44 AM
  3. Rail Button ?
    By Area66 in forum Techniques
    Replies: 5
    Last Post: 28th April 2013, 04:24 AM
  4. Rail Button 3D Model/ TARC rail
    By Johnhg7 in forum Ground Support
    Replies: 4
    Last Post: 9th September 2012, 02:18 PM
  5. Rail button ?
    By ewallace in forum High Power Rocketry (HPR)
    Replies: 20
    Last Post: 30th September 2009, 05:11 PM

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
